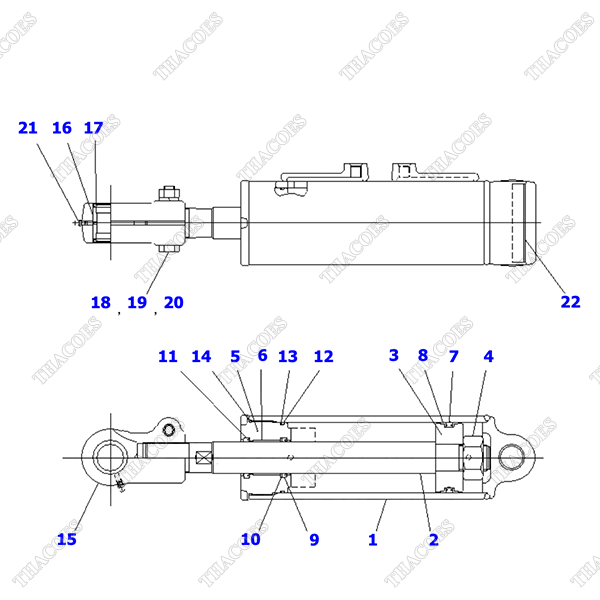

Xi lanh nghiêng 37C-1AT-5020XC (8/5 độ)

37C-1AT-5010XC

TILT CYLINDER ASS'Y,(6Я/12Я)

2

SN: 133001-UP

37C-1AT-5020XC

TILT CYLINDER ASS'Y,(8Я/5Я)

2

SN: 133001-UP

1

30C-63-11110

• CYLINDER SUB ASS'Y

1

SN: 133001-UP

2

37C-1AW-3010

• ROD,(6Я/12Я)

1

SN: 133001-UP

37C-1AW-3040

• ROD ASS'Y,(8Я/5Я)

1

SN: 133001-UP

3

30C-63-11120

• PISTON

1

SN: 133001-UP

4

01580-13326

• NUT

1

SN: 133001-UP

5

30C-63-11130

• HEAD

1

SN: 133001-UP

6

3EC-64-32280

• BUSHING

1

SN: 133001-UP

7

30C-63-11140

• PACKING (KIT)

2

SN: 133001-UP

8

30C-63-11150

• RING,BACK UP (KIT)

1

SN: 133001-UP

9

30C-63-11160

• PACKING (KIT)

1

SN: 133001-UP

10

30C-63-11170

• RING,BACK UP (KIT)

1

SN: 133001-UP

11

30C-63-11180

• SEAL,DUST (KIT)

1

SN: 133001-UP

12

30C-63-11190

• O-RING (KIT)

1

SN: 133001-UP

13

30C-63-11210

• RING,BACK UP (KIT)

1

SN: 133001-UP

14

07000-12090

• O-RING (KIT)

1

SN: 133001-UP

15

30C-63-11220

• HEAD

1

SN: 133001-UP

16

30C-63-11230

• BUSHING

1

SN: 133001-UP

17

07145-00035

• SEAL,DUST

2

SN: 133001-UP

18

01010-81475

• BOLT

1

SN: 133001-UP

19

01580-11411

• NUT

1

SN: 133001-UP

20

01602-21442

• WASHER

1

SN: 133001-UP

21

07020-00001

• FITTING,GREASE

1

SN: 133001-UP

22

3EC-64-32260

• BUSHING

2

SN: 133001-UP

SERVICE KIT

KIT

30C-63-11240

SEAL KIT,TILT CYLINDER

2

SN: 133001-UP
