1 |
34B-21-14151 |
NUT |
12 |
SN: 133001-UP |
|
2 |
3EB-24-51341 |
BUSHING |
1 |
SN: 133001-UP |
|
3 |
3EB-24-51311 |
SENSOR |
1 |
SN: 133001-UP |
|
4 |
07145-00040 |
SEAL (K5,6,7,8) |
2 |
SN: 133001-UP |
|
5 |
06000-30209 |
BEARING |
2 |
SN: 133001-UP |
|
6 |
3EC-24-51360 |
SEAL (K6,8) |
1 |
SN: 133001-UP |
|
7 |
3EC-24-51340 |
PIN |
1 |
SN: 133001-UP |
|
8 |
3EC-24-51220 |
KNUCKLE,R.H. |
1 |
SN: 133001-UP |
|
9 |
3EC-24-31350 |
WASHER |
2 |
SN: 133001-UP |
|
10 |
3EB-24-51350 |
GROMMET |
1 |
SN: 133001-UP |
|
11 |
3EB-24-51390 |
NUT |
2 |
SN: 133001-UP |
|
12 |
3EC-24-51310 |
SPACER |
1 |
SN: 133001-UP |
|
13 |
3EC-24-37160 |
BEARING (K5,6,7,8) |
4 |
SN: 133001-UP |
|

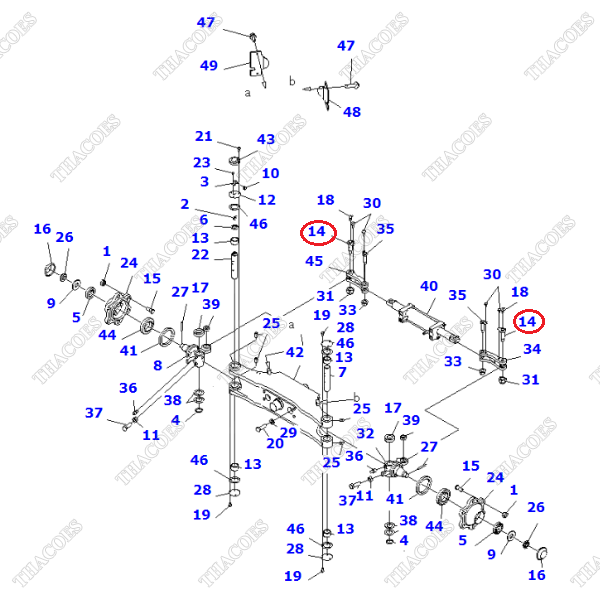

14 |
3EC-24-41270SG |
PIN |
2 |
SN: 133001-UP |
|
15 |
3EC-24-11320 |
BOLT |
12 |
SN: 133001-UP |
|
16 |
3EC-24-31320SA |
CAP |
2 |
SN: 133001-UP |
|

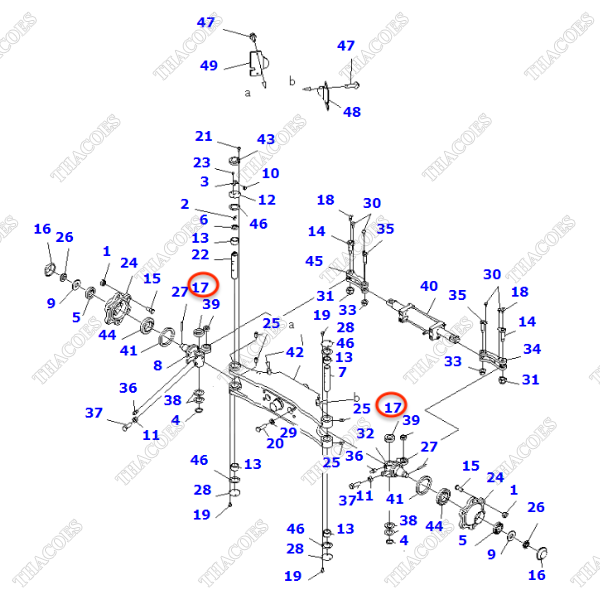

17 |
3ED-24-18240 |
BEARING,(FOR 3.5 TON TO 4.5 TON) (K5,6) |
2 |
SN: 133001-UP |
|
|
3EC-24-51370 |
BEARING,(FOR 5.0 TON) (K7,8) |
2 |
SN: 133001-UP |
|
18 |
07020-00900 |
FITTING,GREASE |
2 |
SN: 133001-UP |
|
19 |
01435-00614 |
BOLT |
9 |
SN: 133001-UP |
|
20 |
01010-82065 |
BOLT |
4 |
SN: 133001-UP |
|
21 |
01435-00630 |
BOLT |
3 |
SN: 133001-UP |
|
22 |
3EC-24-51330 |
PIN |
1 |
SN: 133001-UP |
|
23 |
01023-10408 |
SCREW |
2 |
SN: 133001-UP |
|

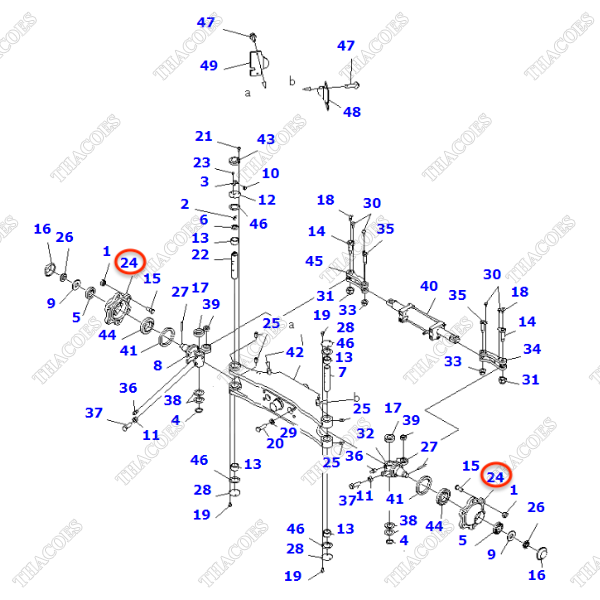

24 |
3EC-24-51230 |
HUB |
2 |
SN: 133001-UP |
|
25 |
07020-00001 |
FITTING,GREASE |
4 |
SN: 133001-UP |
|
26 |
34C-24-11260 |
NUT |
2 |
SN: 133001-UP |
|
27 |
04025-00650 |
PIN |
2 |
SN: 133001-UP |
|
28 |
3EC-24-51350 |
PLATE |
3 |
SN: 133001-UP |
|
29 |
01643-32060 |
WASHER |
4 |
SN: 133001-UP |
|
30 |
01435-00820 |
BOLT |
4 |
SN: 133001-UP |
|
31 |
01598-02021 |
NUT |
2 |
SN: 133001-UP |
|
32 |
3EC-24-51210 |
KNUCKLE,L.H. |
1 |
SN: 133001-UP |
|
33 |
3EC-24-37320 |
NUT |
2 |
SN: 133001-UP |
|
34 |

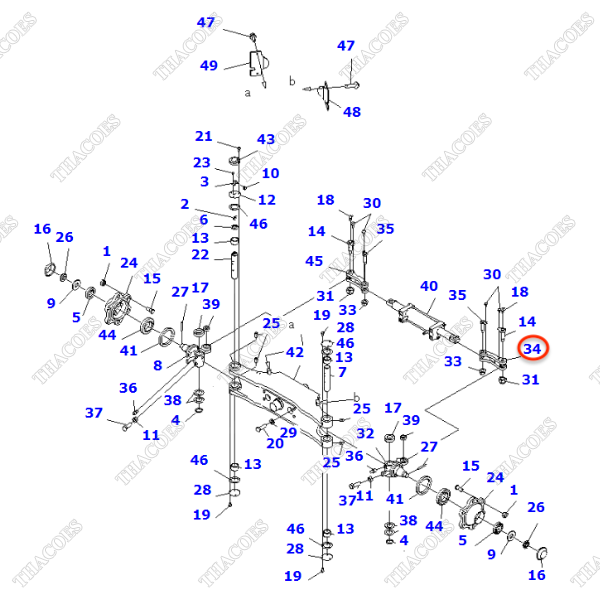

3EC-24-49250SG |
LINK,L.H. |
1 |
SN: 133001-UP |
|
35 |
3EC-24-41280SG |
PIN |
2 |
SN: 133001-UP |
|
36 |
07020-00000 |
FITTING,GREASE |
2 |
SN: 133001-UP |
|
37 |
3EB-24-51380 |
BOLT |
2 |
SN: 133001-UP |
|
38 |
307-27-11340 |
SHIM, 0.3MM |
4 |
SN: 133001-UP |
|
39 |
3EC-24-41240 |
BUSHING |
2 |
SN: 133001-UP |
|
40 |
3EC-64-51110 |
CYLINDER ASS'Y,POWER STEERING |
1 |
SN: 133001-UP |
|
41 |
07012-00110 |
SEAL |
2 |
SN: 133001-UP |
|
42 |
3EC-24-51110UA |
AXLE,STEERING |
1 |
SN: 133001-UP |
|
43 |
3EC-24-51320 |
COVER |
1 |
SN: 133001-UP |
|

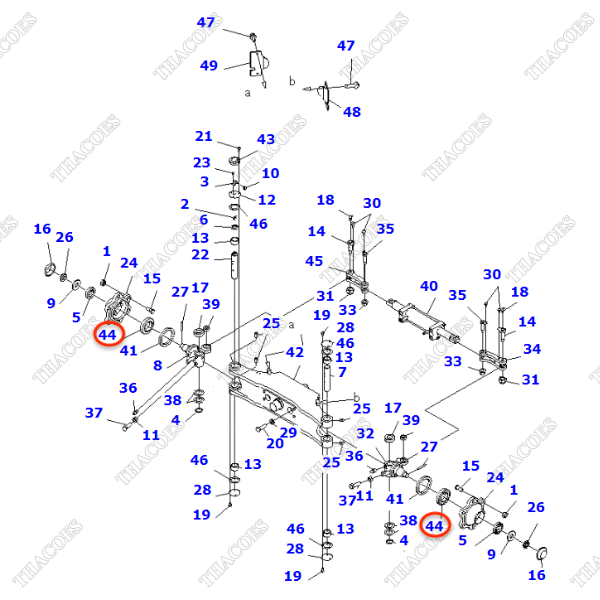

44 |
300-22-31360 |
BEARING |
2 |
SN: 133001-UP |
|
45 |
3EC-24-41260SG |
LINK,R.H. |
1 |
SN: 133001-UP |
|

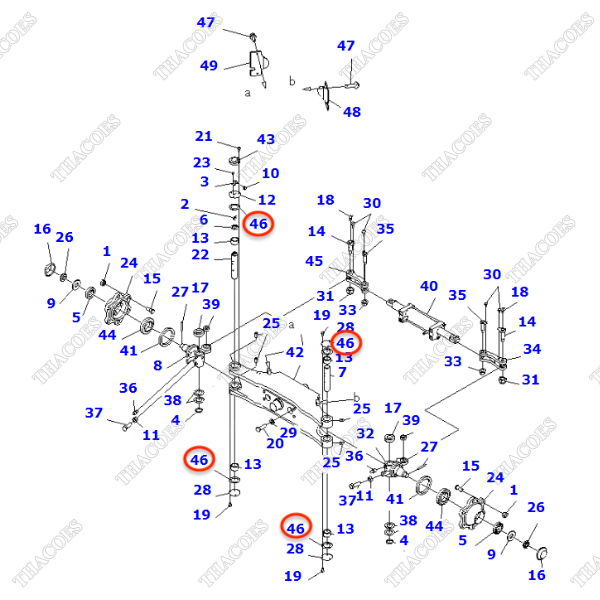

46 |
3EC-24-37190 |
GASKET (K5,6,7,8) |
4 |
SN: 133001-UP |
|
|
|
SERVICE KIT |
|
|
|
K5 |
3EC-24-05100 |
BEARING KIT,(L.H.)(FOR 3.5 TON T0 4.5 TON) |
1 |
SN: 133001-UP |
|
K6 |
3EC-24-05110 |
BEARING KIT,(R.H.)(FOR 3.5 TON T0 4.5 TON) |
1 |
SN: 133001-UP |
|
K7 |
3EC-24-05120 |
BEARING KIT,(L.H.) (FOR 5.0 TON) |
1 |
SN: 133001-UP |
|
K8 |
3EC-24-05130 |
BEARING KIT,(R.H.) (FOR 5.0 TON) |
1 |
SN: 133001-UP |
