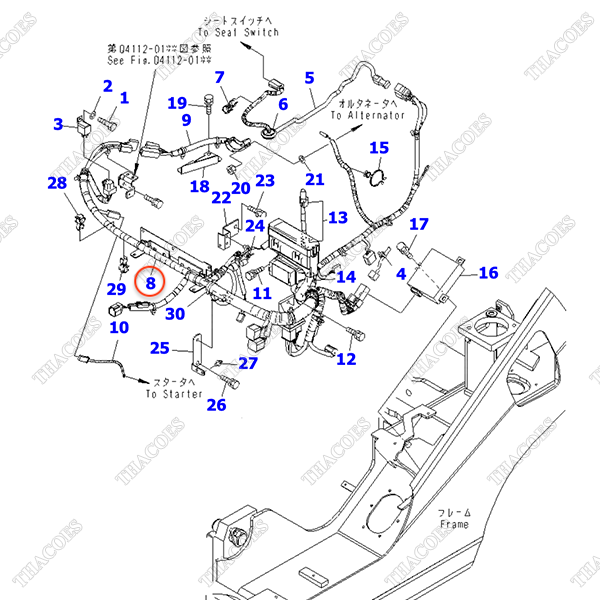

Cuộn dây điện chính 3EB-55-62212; 3EB-55-68212 (AT, Có cảm biến góc lái)

1

3EB-55-62760

BOLT

1

SN: 308845-UP

2

01640-20508

WASHER

1

SN: 308845-UP

3

3EB-55-31270

RELAY

1

SN: 308845-UP

4

3EB-55-23340

GROMMET

1

SN: 308845-UP

5

3EB-55-51140

CLAMP

1

SN: 308845-UP

6

3EB-55-68212

WIRING HARNESS

1

SN: 308845-UP

3EB-55-41230

• RELAY BOX ASS'Y

1

SN: 308845-UP

YZ361897-0653

•• COVER

1

SN: 308845-UP

YZ363897-0633

•• BLOCK ASS'Y

1

SN: 308845-UP

YZ361897-0643

•• COVER

1

SN: 308845-UP

3EB-55-41240

• FUSE BOX ASS'Y

1

SN: 308845-UP

37B-1EJ-4020

• FUSE, 15A

2

SN: 308845-UP

37B-1EJ-4010

• FUSE, 10A

10

SN: 308845-UP

37B-1EL-4020

• FUSE, 120A

1

SN: 308845-UP

37B-1EK-4030

• FUSE, 60A

1

SN: 308845-UP

37B-1EK-4010

• FUSE, 40A

1

SN: 308845-UP

3EB-55-51230

• RELAY

3

SN: 308845-UP

3EB-55-51140

• CLAMP

10

SN: 308845-UP

3EB-55-51150

• CLAMP

1

SN: 308845-UP

7

3EB-55-69230

WIRING HARNESS,(FD20-30)

1

SN: 308845-UP

3EB-55-69240

WIRING HARNESS,(FD20H-30H,35A)

1

SN: 308845-UP

8

3EB-55-62350

WIRE

1

SN: 308845-UP

9

01024-80616

BOLT

2

SN: 308845-UP

10

01024-80620

BOLT

1

SN: 308845-UP

11

08211-00720

CLIP

2

SN: 308845-UP

12

08211-01520

CLIP

1

SN: 308845-UP

13

37B-1EP-4020

LOCK,(FD20-30)

1

SN: 308845-UP

37B-1EP-4020

LOCK,(FD20H-30H,35A)

2

SN: 308845-UP

14

3EB-55-69720SG

BRACKET

1

SN: 308845-UP

15

01024-80812

BOLT

1

SN: 308845-UP

16

01580-10605

NUT

1

SN: 308845-UP

17

01602-20619

WASHER

1

SN: 308845-UP

18

3EB-55-62741SG

BRACKET

1

SN: 308845-UP

19

01024-80812

BOLT

1

SN: 308845-UP

20

3EB-55-51150

CLAMP,(FD20-30)

1

SN: 308845-UP

3EB-55-51150

CLAMP,(FD20H-30H,35A)

2

SN: 308845-UP

21

3EB-55-62751SG

BRACKET

1

SN: 308845-UP

22

01024-80812

BOLT

1

SN: 308845-UP

23

3EB-55-51150

CLAMP

1

SN: 308845-UP

24

37B-1PC-5330

CLAMP

1

SN: 308845-UP

25

37B-1PC-5340

CLAMP

1

SN: 308845-UP

26

08034-40521

BAND

1

SN: 308845-UP

27

37B-1PC-5360

CLAMP

1

SN: 308845-UP

28

3EB-55-51140

CLAMP

1

SN: 308845-UP

29

3EB-55-69731SG

BRACKET

1

SN: 308845-UP

30

01024-80825

BOLT

1

SN: 308845-UP

31

01643-31032

WASHER

1

SN: 308845-UP

32

04434-52108

CLIP

2

SN: 308845-UP

33

07095-20314

CUSHION

2

SN: 308845-UP

34

01024-80820

BOLT

2

SN: 308845-UP
