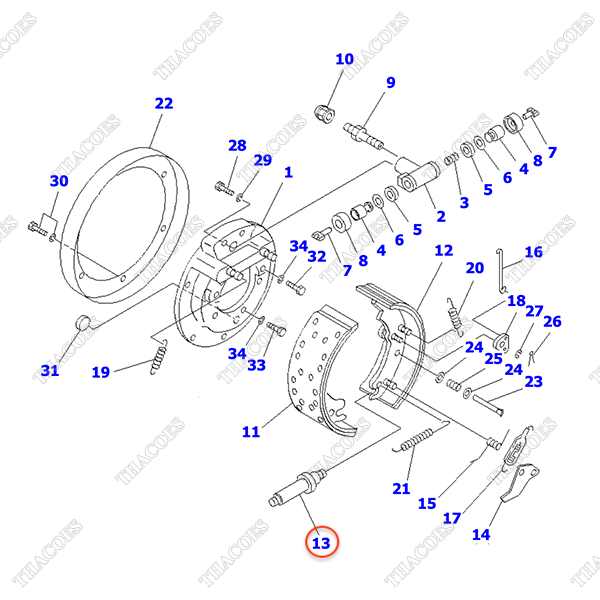

Bulong tăng phanh phải 3EC-30-21551 (SN: 43892-UP)

3FD-30-22102

BRAKE ASS'Y,L.H.

1

SN: 43892-UP

3FD-30-22101

BRAKE ASS'Y,L.H.

1

SN: 40306-43891

3FD-30-22100

BRAKE ASS'Y,L.H.

1

SN: 40001-40305

3FD-30-22502

BRAKE ASS'Y,R.H.

1

SN: 43892-UP

3FD-30-22501

BRAKE ASS'Y,R.H.

1

SN: 40306-43891

3FD-30-22500

BRAKE ASS'Y,R.H.

1

SN: 40001-40305

1

3ED-30-31111

• PLATE,L.H.

1

SN: 40001-UP

3ED-30-31511

• PLATE,R.H.

1

SN: 40001-UP

3ED-30-41320

• CYLINDER ASS'Y,WHEEL

1

SN: 40001-UP

2

•• BODY

1

SN: 40001-UP

3

•• SPRING (K7)

1

SN: 40001-UP

•• PISTON ASS'Y (K7)

2

SN: 40001-UP

4

••• PISTON

1

SN: 40001-UP

5

••• CUP (K7)

1

SN: 40001-UP

6

••• RING,BACK-UP (K7)

1

SN: 40001-UP

7

3ED-30-41370

•• ROD,CONNECTING

2

SN: 40001-UP

8

3ED-30-41380

•• BOOT (K7)

2

SN: 40001-UP

9

3ED-30-41340

•• SCREW,BLEEDER

1

SN: 40001-UP

10

3ED-30-41350

•• CAP

1

SN: 40001-UP

11

3FD-30-22110

• SHOE ASS'Y,L.H.

1

SN: 40001-UP

3FD-30-22510

• SHOE ASS'Y,R.H.

1

SN: 40001-UP

12

3FD-30-22120

• SHOE ASS'Y,L.H.

1

SN: 40001-UP

3FD-30-22520

• SHOE ASS'Y,R.H.

1

SN: 40001-UP

13

3EC-30-21151

• ADJUSTER ASS'Y,L.H.

1

SN: 43892-UP

3ED-30-31140

• ADJUST SCREW ASS'Y,L.H.

1

SN: 40001-43891

3EC-30-21551

• ADJUSTER ASS'Y,R.H.

1

SN: 43892-UP

3ED-30-31540

• ADJUST SCREW ASS'Y,R.H.

1

SN: 40001-43891

14

3EC-30-21161

• LEVER,L.H.

1

SN: 43892-UP

3ED-30-31150

• LEVER,L.H.

1

SN: 40001-43891

3EC-30-21561

• LEVER,R.H.

1

SN: 43892-UP

3ED-30-31550

• LEVER,R.H.

1

SN: 40001-43891

15

3ED-30-31160

• SPRING,L.H.

1

SN: 40001-UP

3ED-30-31560

• SPRING,R.H.

1

SN: 40001-UP

16

3ED-30-31171

• LINK,L.H.

1

SN: 40001-UP

3ED-30-31571

• LINK,R.H.

1

SN: 40001-UP

17

3ED-30-31182

• SPRING

1

SN: 40001-UP

18

3ED-30-31190

• LEVER

1

SN: 40001-UP

19

3ED-30-31221

• SPRING

1

SN: 40001-UP

20

3ED-30-31581

• SPRING

1

SN: 40001-UP

21

3ED-30-31270

• SPRING

1

SN: 40001-UP

22

3FD-30-22150

• COVER,DUST

1

SN: 40001-UP

23

3ED-30-31231

• PIN

2

SN: 40001-UP

24

3ED-30-31240

• CUP

4

SN: 40001-UP

25

3ED-30-31250

• SPRING

2

SN: 40001-UP

26

3ED-30-31290

• PIN,COTTER

1

SN: 40001-UP

27

3ED-30-31310

• WASHER

1

SN: 40001-UP

28

3ED-30-31350

• BOLT

2

SN: 40001-UP

29

3ED-30-31360

• WASHER,SPRING

2

SN: 40001-UP

30

3ED-30-31330

• BOLT

6

SN: 40001-UP

31

3ED-30-31280

• COVER

1

SN: 40001-UP

32

3FD-30-22911

BOLT

8

SN: 40306-UP

3FD-30-22910

BOLT

8

SN: 40001-40305

33

07372-21650

BOLT

12

SN: 40306-UP

01010-81445

BOLT

6

SN: 40001-40305

34

01643-51645

WASHER

20

SN: 40306-UP

3EA-71-12780

WASHER

14

SN: 40001-40305
