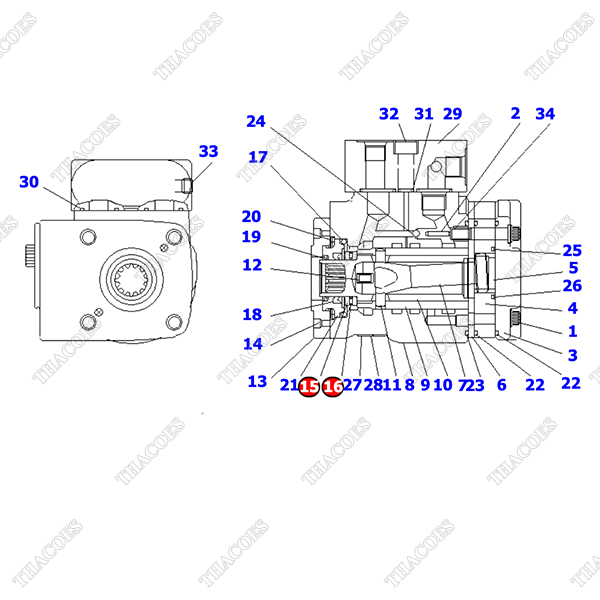

Bộ vòng bi van lái EA64009 (K13)

3EB-34-51511

VALVE ASS'Y,POWER STEERING

1

SN: 300001-UP

1

• VALVE ASS'Y

7

SN: 300001-UP

2

• BOLT,SPRING

1

SN: 300001-UP

3

• COLUMN ASS'Y,ROLL END

1

SN: 300001-UP

4

• BOLT

1

SN: 300001-UP

5

• NUT

1

SN: 300001-UP

6

• WASHER

1

SN: 300001-UP

7

• DRIVE

1

SN: 300001-UP

• CONTROL ASS'Y

1

SN: 300001-UP

8

•• HOUSING

1

SN: 300001-UP

9

•• SLEEVE

1

SN: 300001-UP

10

•• SPOOL

1

SN: 300001-UP

11

• PIN

1

SN: 300001-UP

12

• SPRING

4

SN: 300001-UP

13

• SPACER

1

SN: 300001-UP

14

• SCREW

1

SN: 300001-UP

15

• BEARING (K13)

2

SN: 300001-UP

16

• THRUST BEARING,NEEDLE (K13)

1

SN: 300001-UP

17

• O-RING (K12)

1

SN: 300001-UP

18

• SEAL,OIL (K12)

1

SN: 300001-UP

19

• SEAL,DUST (K12)

1

SN: 300001-UP

20

• RING

1

SN: 300001-UP

21

• GRAND

1

SN: 300001-UP

22

• O-RING (K12)

2

SN: 300001-UP

23

• O-RING (K12)

1

SN: 300001-UP

24

• BALL

1

SN: 300001-UP

25

• SEAL

1

SN: 300001-UP

26

• O-RING (K12)

1

SN: 300001-UP

27

• PLATE,NAME

1

SN: 300001-UP

28

• RIVET

2

SN: 300001-UP

29

• BLOCK,VALVE

1

SN: 300001-UP

30

• O-RING (K12)

4

SN: 300001-UP

31

• O-RING (K12)

1

SN: 300001-UP

32

EAA45020

• BOLT

2

SN: 300001-UP

33

• PLUG

1

SN: 300001-UP

34

• SCREW

1

SN: 300001-UP

SERVICE KIT

K12

EABA0431A

SEAL KIT

1

SN: 300001-UP

K13

EA64009

BEARING KIT,NEEDLE

1

SN: 300001-UP
