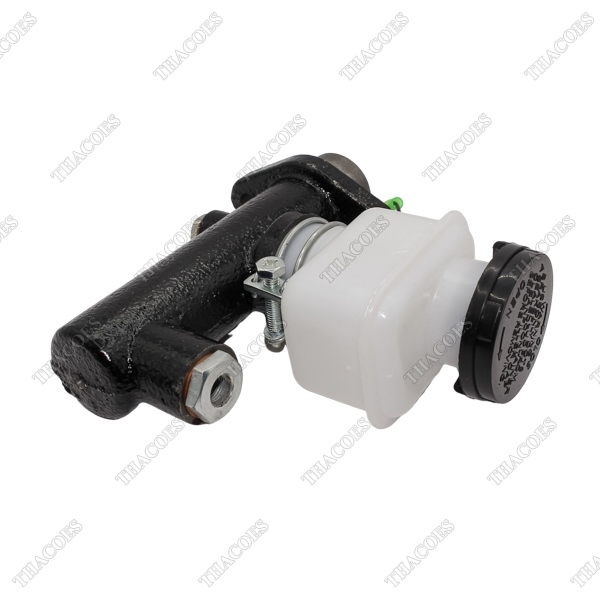

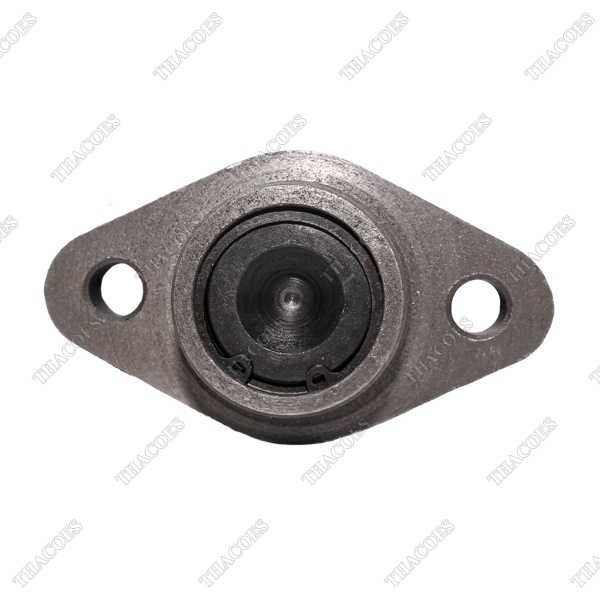

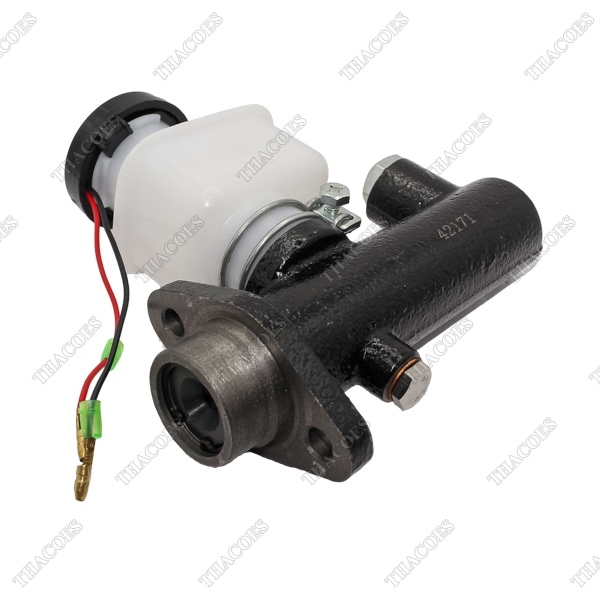

(WC) Xi lanh phanh trên MY012-8375-00

3EC-36-31310

BOOSTER ASS'Y

1

SN: 100001-UP

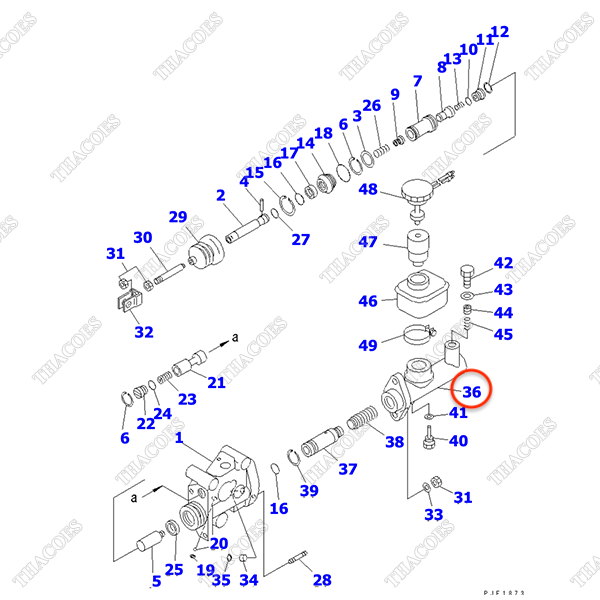

THIS ASSEMBLIE CONSIST OF ALL PARTS SHOWN IN FIGS.L4150-51A0 AND L4150-52A0.

1

MY781-8119-00

• BODY

1

SN: 100001-UP

2

MY781-8138-01

• PISTON

1

SN: 100001-UP

3

MY781-8144-00

• RING

1

SN: 100001-UP

4

MY691-8028-00

• PIN (K11)

1

SN: 100001-UP

5

MY781-8141-00

• ROD

1

SN: 100001-UP

6

MY582-2210-20

• RING,SNAP (K11)

2

SN: 100001-UP

7

MY781-8149-01

• PISTON ASS'Y

1

SN: 100001-UP

8

MY781-8150-00

• VALVE ASS'Y

1

SN: 100001-UP

9

MY781-8151-00

• VALVE ASS'Y

1

SN: 100001-UP

10

MY594-0715-30

• O-RING (K11)

1

SN: 100001-UP

11

MY781-8142-00

• CAP

1

SN: 100001-UP

12

MY582-1210-20

• RING,SNAP (K11)

1

SN: 100001-UP

13

MY151-8111-00

• SPRING

1

SN: 100001-UP

14

MY781-8110-00

• GUIDE,PISTON

1

SN: 100001-UP

15

MY584-3212-20

• RING,SNAP (K11)

1

SN: 100001-UP

16

MY599-8050-30

• O-RING (K11)

2

SN: 100001-UP

17

MY123-8013-30

• CUP (K11)

1

SN: 100001-UP

18

MY595-2026-30

• O-RING (K11)

1

SN: 100001-UP

19

MY329-8006-00

• RING

1

SN: 100001-UP

20

MY611-0318-20

• BALL,STEEL (K11)

1

SN: 100001-UP

21

MY781-8111-00

• SPOOL

1

SN: 100001-UP

22

MY781-8112-00

• CAP

1

SN: 100001-UP

23

MY151-8112-00

• SPRING

1

SN: 100001-UP

24

MY594-1315-30

• O-RING (K11)

1

SN: 100001-UP

25

MY129-8052-90

• SEAL (K11)

1

SN: 100001-UP

26

MY151-8113-00

• SPRING

1

SN: 100001-UP

27

MY599-8056-30

• O-RING (K11)

1

SN: 100001-UP

28

MY561-0820-10

• STUD

2

SN: 100001-UP

29

MY303-1020-40

• BOOT (K11)

1

SN: 100001-UP

30

MY372-8087-00

• ROD,PUSH

1

SN: 100001-UP

31

MY521-0807-00

• NUT

4

SN: 100001-UP

32

MY373-7174-00

• YOKE

1

SN: 100001-UP

33

MY571-0816-00

• WASHER

2

SN: 100001-UP

34

MY781-8086-00

• FILTER (K11)

1

SN: 100001-UP

35

MY589-8005-00

• RING,SNAP (K11)

1

SN: 100001-UP

MY012-8375-00

• CYLINDER ASS'Y

1

SN: 100001-UP

36

•• CYLINDER

1

SN: 100001-UP

37

MY101-8111-00

•• PISTON ASS'Y (K12)

1

SN: 100001-UP

38

MY151-8115-00

•• SPRING (K12)

1

SN: 100001-UP

39

MY582-2812-20

•• RING,SNAP (K12)

1

SN: 100001-UP

40

MY361-8009-00

•• PIN,STOP

1

SN: 100001-UP

41

MY351-0860-00

•• GASKET (K12)

1

SN: 100001-UP

42

MY363-8037-00

•• BOLT

1

SN: 100001-UP

43

MY351-0861-00

•• GASKET (K12)

1

SN: 100001-UP

44

MY171-0113-00

•• CHECK VALVE (K12)

1

SN: 100001-UP

45

MY152-0167-00

•• SPRING,VALVE (K12)

1

SN: 100001-UP

46

•• RESERVOIR

1

SN: 100001-UP

47

MY384-1005-00

•• FILTER

1

SN: 100001-UP

48

MY385-8014-00

•• INDICATOR

1

SN: 100001-UP

49

MY387-0048-00

•• CLAMP

1

SN: 100001-UP
