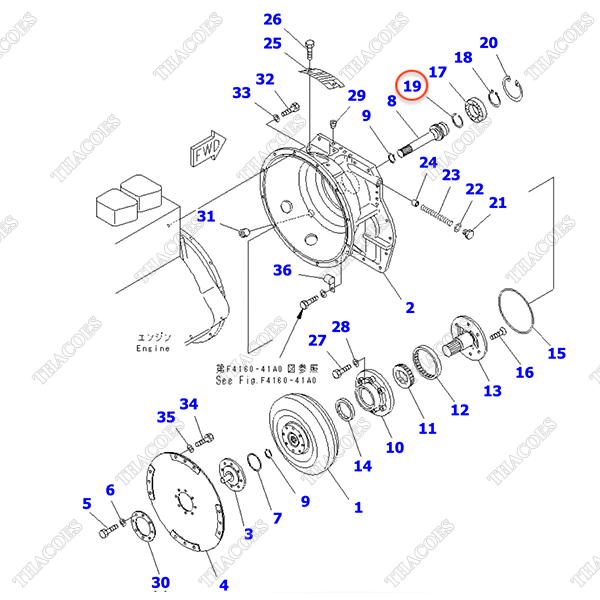

Phớt xéc măng 3EC-13-12640 (K3)

3EC-13-31100

TORQUE CONVERTER A.

1

SN: 100001-UP

1

DC6A76929200

• CIRCUIT,TORQUE CONVERTER

1

SN: 100001-UP

2

DC76A7002000

• HOUSING

1

SN: 100001-UP

3

DC76A7003000

• GUIDE,INPUT

1

SN: 100001-UP

4

DC76A7004000

• PLATE ASS'Y,INPUT

1

SN: 100001-UP

5

3EC-13-12340

• BOLT

8

SN: 100001-UP

6

3EC-13-12350

• WASHER

8

SN: 100001-UP

7

DC8143164400

• O-RING (K3)

1

SN: 100001-UP

8

DC76A7008000

• SHAFT,TURBINE

1

SN: 100001-UP

9

DC8131029330

• RING,SNAP

2

SN: 100001-UP

DC7335922610

• PUMP ASS'Y,GEAR

1

SN: 100001-UP

10

DC7327001000

•• CASE ASS'Y

1

SN: 100001-UP

11

DC7327002000

•• GEAR,DRIVE

1

SN: 100001-UP

12

DC7327003000

•• GEAR,DRIVEN

1

SN: 100001-UP

13

DC7335004000

•• SUPPORT,STATOR

1

SN: 100001-UP

14

DC8106212030

•• SEAL,OIL (K3)

1

SN: 100001-UP

15

DC81431A7300

•• O-RING (K3)

1

SN: 100001-UP

16

DC8059061000

•• SCREW

11

SN: 100001-UP

17

3EC-13-12610

• BEARING,BALL

1

SN: 100001-UP

18

3EC-13-12550

• RING,SNAP

1

SN: 100001-UP

19

3EC-13-12640

• RING,SEAL (K3)

1

SN: 100001-UP

20

DC8132090120

• RING,SNAP

1

SN: 100001-UP

21

3EB-13-12680

• PLUG

1

SN: 100001-UP

22

3EB-13-12690

• GASKET (K3)

1

SN: 100001-UP

23

DC7723210000

• SPRING,PRESSURE

1

SN: 100001-UP

24

DC7708270000

• PISTON

1

SN: 100001-UP

25

3EC-13-12770

• COVER

1

SN: 100001-UP

26

3EB-13-12780

• BOLT

2

SN: 100001-UP

27

3EB-13-21710

• BOLT

5

SN: 100001-UP

28

3EB-13-12740

• GASKET (K3)

5

SN: 100001-UP

29

DC8059941110

• PLUG

4

SN: 100001-UP

30

DC76A7024000

• WASHER

1

SN: 100001-UP

31

DCK704350617

• PLUG

1

SN: 100001-UP

32

01010-81035

BOLT

12

SN: 100001-UP

33

01643-51032

WASHER

12

SN: 100001-UP

34

01050-51022

BOLT

8

SN: 100001-UP

35

01643-51032

WASHER

8

SN: 100001-UP

36

08035-01510

CLIP

1

SN: 100001-UP
