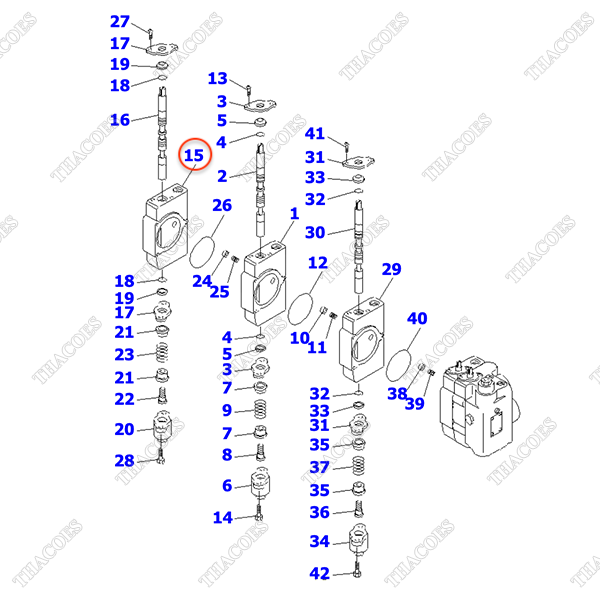

(5sv) Ngăn van công tác 30B-61-11250, 30B-61-11270 (tay 5)

37B-1LA-5521

CONTROL VALVE ASS'Y,(FOR 3.0T)

1

SN: 300001-UP

37B-1LA-5531

CONTROL VALVE ASS'Y,(FOR 3.5T)

1

SN: 300001-UP

THESE ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.R4140-51A1 TO R4140-54A3.

30B-61-11280

• SPOOL SECTION ASS'Y,ATTACHMENT

2

SN: 300001-UP

1

•• HOUSING

1

SN: 300001-UP

2

•• SPOOL

1

SN: 300001-UP

3

30A-61-11140

•• PLATE

2

SN: 300001-UP

4

30A-61-11150

•• O-RING

2

SN: 300001-UP

5

30A-61-11160

•• WIPER

2

SN: 300001-UP

6

30A-61-11170

•• CAP,SPOOL

1

SN: 300001-UP

7

30A-61-11180

•• SEAT

2

SN: 300001-UP

8

30A-61-11190

•• SCREW,CAP

1

SN: 300001-UP

9

30A-61-11210

•• SPRING,SPOOL

1

SN: 300001-UP

10

30A-61-11730

•• POPPET,CHECK VALVE

1

SN: 300001-UP

11

30A-61-11740

•• SPRING,CHECK VALVE

1

SN: 300001-UP

12

30A-61-11750

•• O-RING

1

SN: 300001-UP

13

30A-61-11220

•• SCREW

2

SN: 300001-UP

14

30A-61-11230

•• BOLT

2

SN: 300001-UP

30B-61-11250

• SPOOL SECTION ASS'Y,ATTACHMENT

1

SN: 300001-UP

15

•• HOUSING

1

SN: 300001-UP

16

•• SPOOL

1

SN: 300001-UP

17

30A-61-11140

•• PLATE

2

SN: 300001-UP

18

30A-61-11150

•• O-RING

2

SN: 300001-UP

19

30A-61-11160

•• WIPER

2

SN: 300001-UP

20

30A-61-11170

•• CAP,SPOOL

1

SN: 300001-UP

21

30A-61-11180

•• SEAT

2

SN: 300001-UP

22

30A-61-11190

•• SCREW,CAP

1

SN: 300001-UP

23

30A-61-11210

•• SPRING,SPOOL

1

SN: 300001-UP

24

30A-61-11730

•• POPPET,CHECK VALVE

1

SN: 300001-UP

25

30A-61-11740

•• SPRING,CHECK VALVE

1

SN: 300001-UP

26

30A-61-11750

•• O-RING

1

SN: 300001-UP

27

30A-61-11220

•• SCREW

2

SN: 300001-UP

28

30A-61-11230

•• BOLT

2

SN: 300001-UP

30A-61-11850

• SPOOL SECTION ASS'Y,ATTACHMENT

1

SN: 300001-UP

29

•• HOUSING

1

SN: 300001-UP

30

•• SPOOL

1

SN: 300001-UP

31

30A-61-11140

•• PLATE

2

SN: 300001-UP

32

30A-61-11150

•• O-RING

2

SN: 300001-UP

33

30A-61-11160

•• WIPER

2

SN: 300001-UP

34

30A-61-11170

•• CAP,SPOOL

1

SN: 300001-UP

35

30A-61-11180

•• SEAT

2

SN: 300001-UP

36

30A-61-11190

•• SCREW,CAP

1

SN: 300001-UP

37

30A-61-11210

•• SPRING,SPOOL

1

SN: 300001-UP

38

30A-61-11730

•• POPPET,CHECK VALVE

1

SN: 300001-UP

39

30A-61-11740

•• SPRING,CHECK VALVE

1

SN: 300001-UP

40

30A-61-11750

•• O-RING

1

SN: 300001-UP

41

30A-61-11220

•• SCREW

2

SN: 300001-UP

42

30A-61-11230

•• BOLT

2

SN: 300001-UP
